RP2040 boot

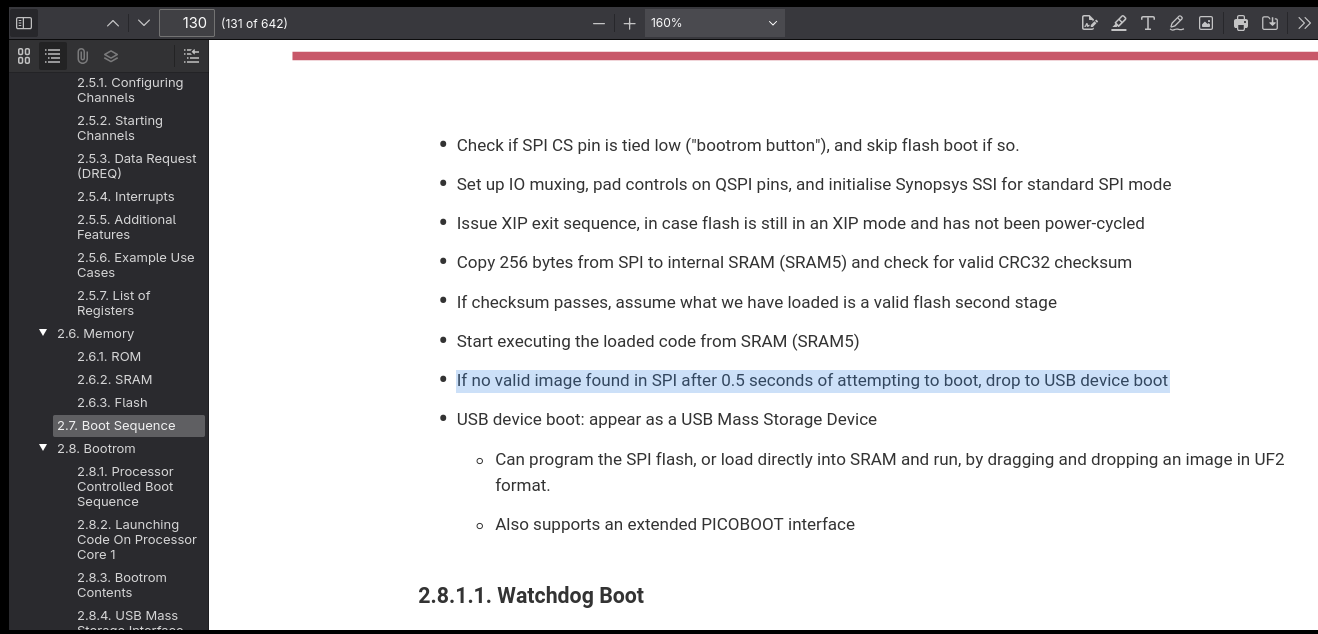

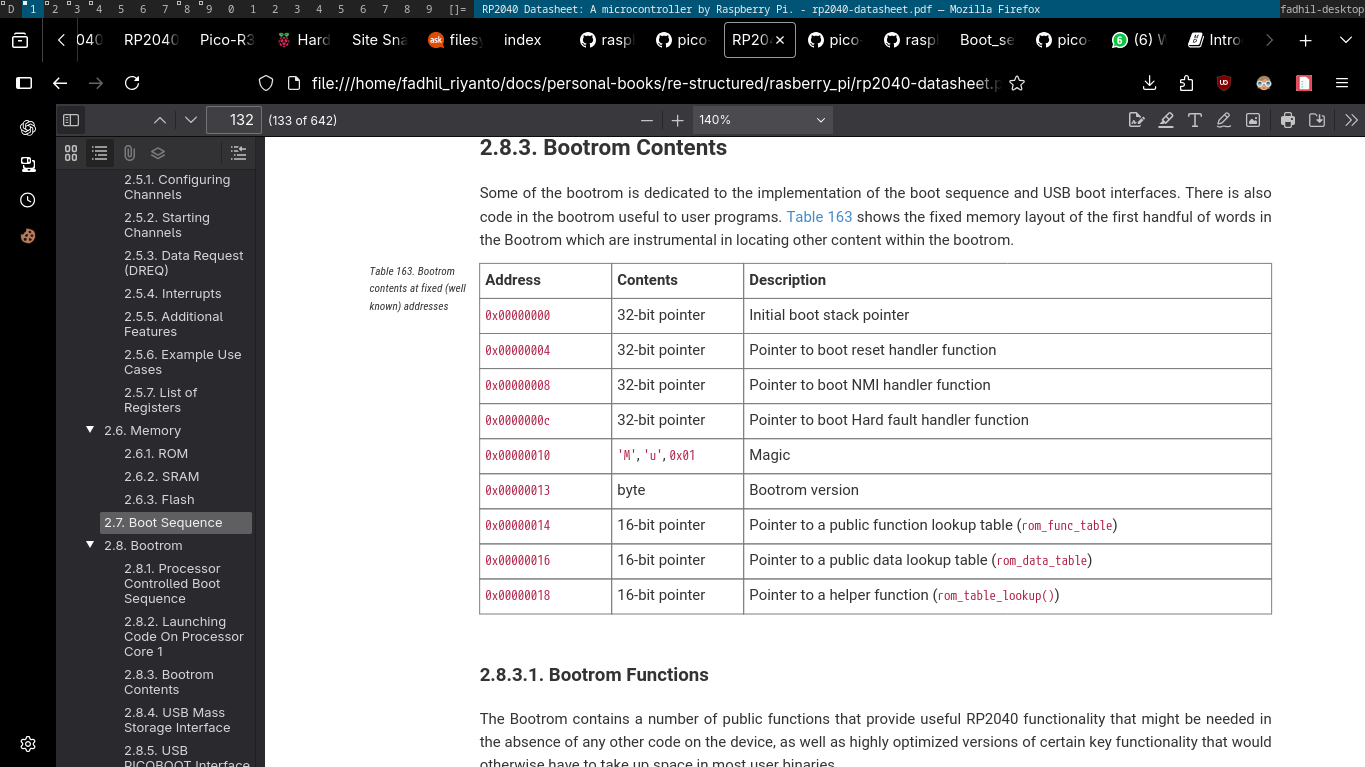

first, lets look at this docs

I'll prove this

1st, please look at this cmake, they says bootrom_rt0.S, which is https://github.com/raspberrypi/pico-bootrom-rp2040/blob/ef22cd8ede5bc007f81d7f2416b48db90f313434/CMakeLists.txt#L39
2nd, the contents

the strange header

in bootrom_rt0.S contains a strange header like this

#include "hardware/regs/addressmap.h"
#include "hardware/regs/pads_bank0.h"
#include "hardware/regs/resets.h"
#include "hardware/regs/sio.h"
#include "hardware/regs/watchdog.h"
#include "hardware/regs/syscfg.h"
#include "hardware/regs/clocks.h"
#include "hardware/regs/vreg_and_chip_reset.h"
#include "hardware/regs/m0plus.h"
#include "git_info.h"

warn: this is just my speculation, the real location is in https://github.com/raspberrypi/pico-sdk/tree/master/src/rp2040/hardware_regs/include/hardware/regs, but the theory IDK. i just matching the file

please inform me if you find something intresting in https://github.com/raspberrypi/pico-sdk/blob/master/src/CMakeLists.txt

boot sequence

this is the most important stuff

1st, please look at this cmake, they says bootrom_rt0.S, which is https://github.com/raspberrypi/pico-bootrom-rp2040/blob/ef22cd8ede5bc007f81d7f2416b48db90f313434/CMakeLists.txt#L39
2nd, the bootrom_rt0.S, this is important https://github.com/raspberrypi/pico-bootrom-rp2040/blob/ef22cd8ede5bc007f81d7f2416b48db90f313434/bootrom/bootrom_rt0.S#L40-L43
3st, bootrom_rt0.S jump into main(), https://github.com/raspberrypi/pico-bootrom-rp2040/blob/ef22cd8ede5bc007f81d7f2416b48db90f313434/bootrom/bootrom_rt0.S#L303
the boot main() Cmake, https://github.com/raspberrypi/pico-bootrom-rp2040/blob/ef22cd8ede5bc007f81d7f2416b48db90f313434/CMakeLists.txt#L41
main() func, https://github.com/raspberrypi/pico-bootrom-rp2040/blob/ef22cd8ede5bc007f81d7f2416b48db90f313434/bootrom/bootrom_main.c#L226
busy loop with ring-oscillator? https://github.com/raspberrypi/pico-bootrom-rp2040/blob/ef22cd8ede5bc007f81d7f2416b48db90f313434/bootrom/bootrom_main.c#L246

jump into _flash_boot(), https://github.com/raspberrypi/pico-bootrom-rp2040/blob/ef22cd8ede5bc007f81d7f2416b48db90f313434/bootrom/bootrom_main.c#L251
crc32 checking, https://github.com/raspberrypi/pico-bootrom-rp2040/blob/ef22cd8ede5bc007f81d7f2416b48db90f313434/bootrom/bootrom_main.c#L75-L77
intresting stuff, this is calculating the time taken? https://github.com/raspberrypi/pico-bootrom-rp2040/blob/ef22cd8ede5bc007f81d7f2416b48db90f313434/bootrom/bootrom_main.c#L67-L72
execute boot2 stage: https://github.com/raspberrypi/pico-bootrom-rp2040/blob/ef22cd8ede5bc007f81d7f2416b48db90f313434/bootrom/bootrom_main.c#L95
this variable hold pointer into boot2 stage location, which is boot2_load
boot2_load https://github.com/raspberrypi/pico-bootrom-rp2040/blob/ef22cd8ede5bc007f81d7f2416b48db90f313434/bootrom/bootrom_main.c#L44
boot2 offset calculation, https://github.com/raspberrypi/pico-bootrom-rp2040/blob/ef22cd8ede5bc007f81d7f2416b48db90f313434/bootrom/bootrom_main.c#L41
this define need a triage, because SRAM_END is 0x20042000, which at end of static ram. is really boot2 stage is lives before the sram ended?

boot2

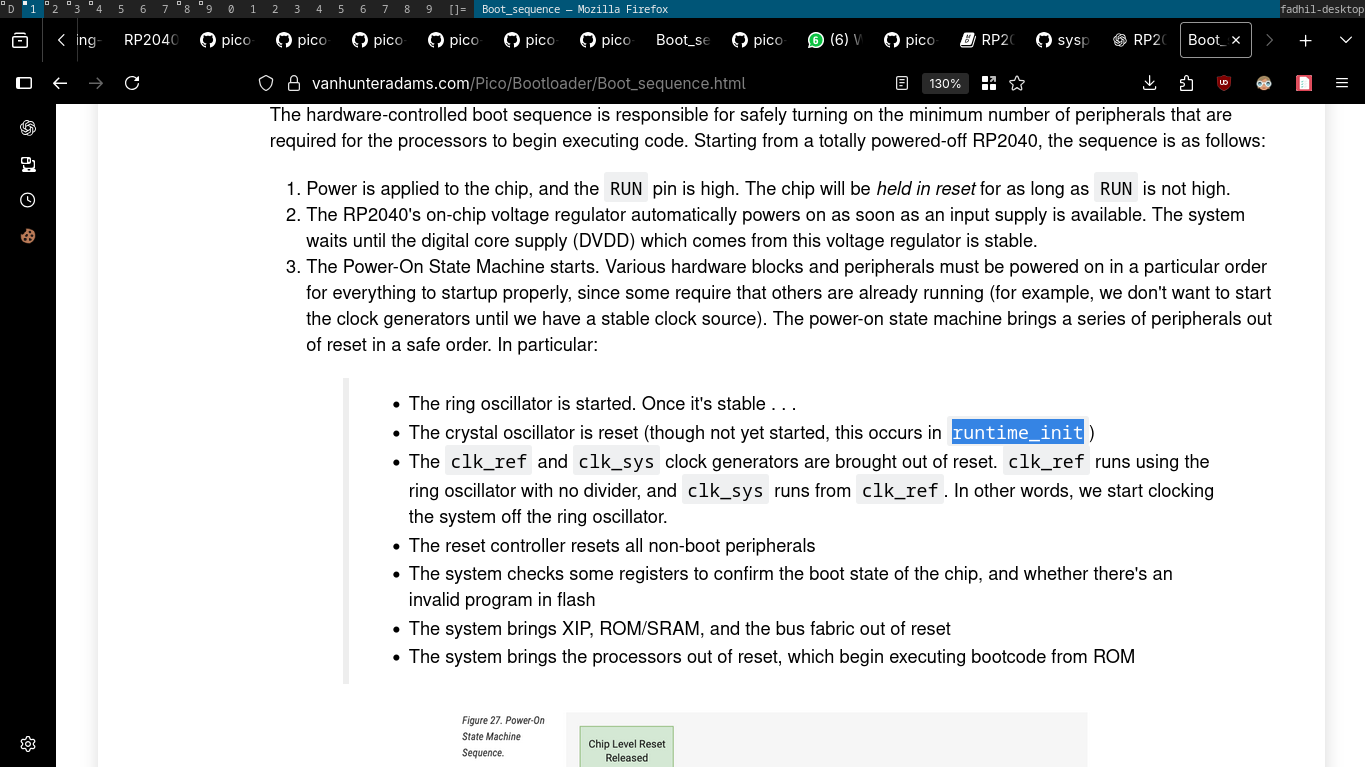

runtime_init ?, in crt0.S, like what https://vanhunteradams.com/Pico/Bootloader/Boot_sequence.html mention?

first, we look at this file memmap_default.ld

here, we know that, they call pico_flash_region.ld, which located on src/rp2_common/pico_standard_link/pico_flash_region.template.ld
the cmake then convert pico_flash_region.template.ld into pico_flash_region.ld using cmake

this code idk what its used for, also where the variable coming-off

boot2 revision

this is the actual boot2 is located

https://github.com/raspberrypi/pico-sdk/tree/master/src/rp2040/boot_stage2
inside will have many files, all of them is bootloader, but with different hardware. in my case I USE w25q080, THIS is how I know it

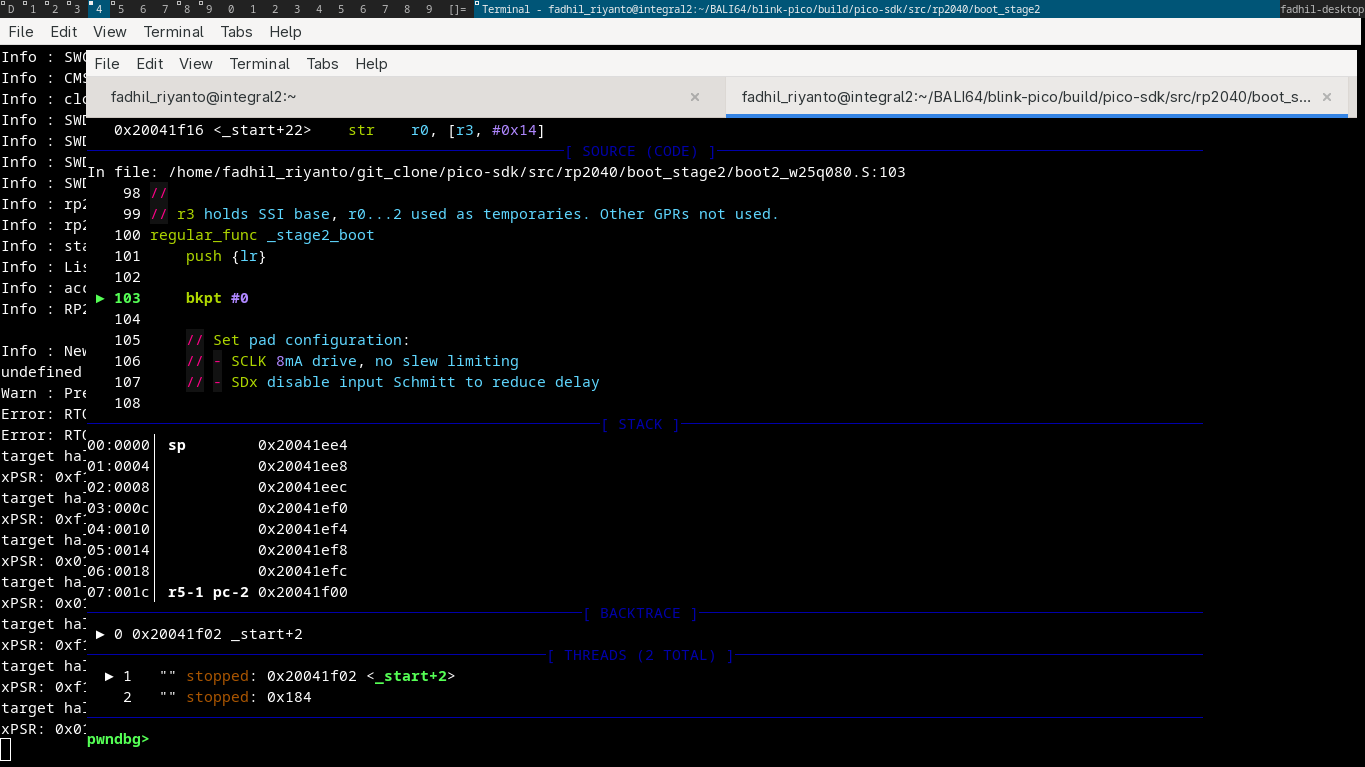

note: how I find it? its manually set program counter register to 0x20041f00, from somewhere after ctrl + c is fired. we cant stop at 0x20041f00 because at that time. the second boot rom is not loaded yet.

another way, if you was find your "flash hardware driver", let's add breakpoint here, example

this will stop execution without hassle of hardware breakpoint, or watching program counter value.

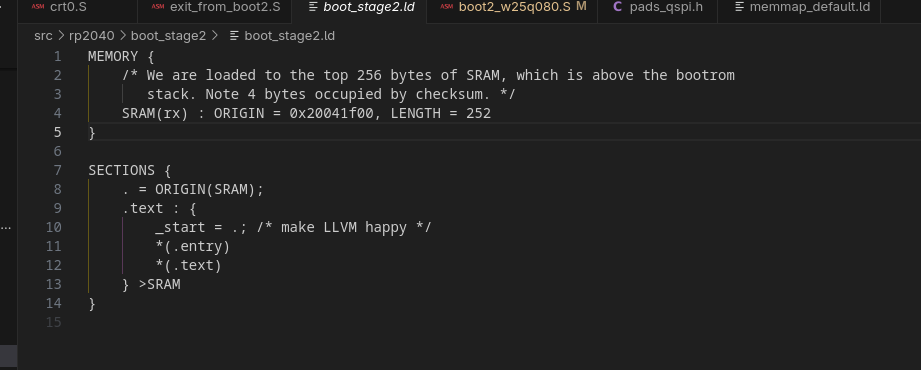

if you curious how I find magic number 0x20041f00, please look at this file

linker script

there has various linker scripts

boot_stage2
memmap_default.ld
pico_flash_region, this is included on memmap_default.ld

if we merge both memmap_default.ld and pico_flash_region.ld, we will got this

MEMORY
{
    FLASH(rx) : ORIGIN = 0x10000000, LENGTH = ${PICO_FLASH_SIZE_BYTES_STRING}
    RAM(rwx) : ORIGIN =  0x20000000, LENGTH = 256k
    SCRATCH_X(rwx) : ORIGIN = 0x20040000, LENGTH = 4k
    SCRATCH_Y(rwx) : ORIGIN = 0x20041000, LENGTH = 4k
}

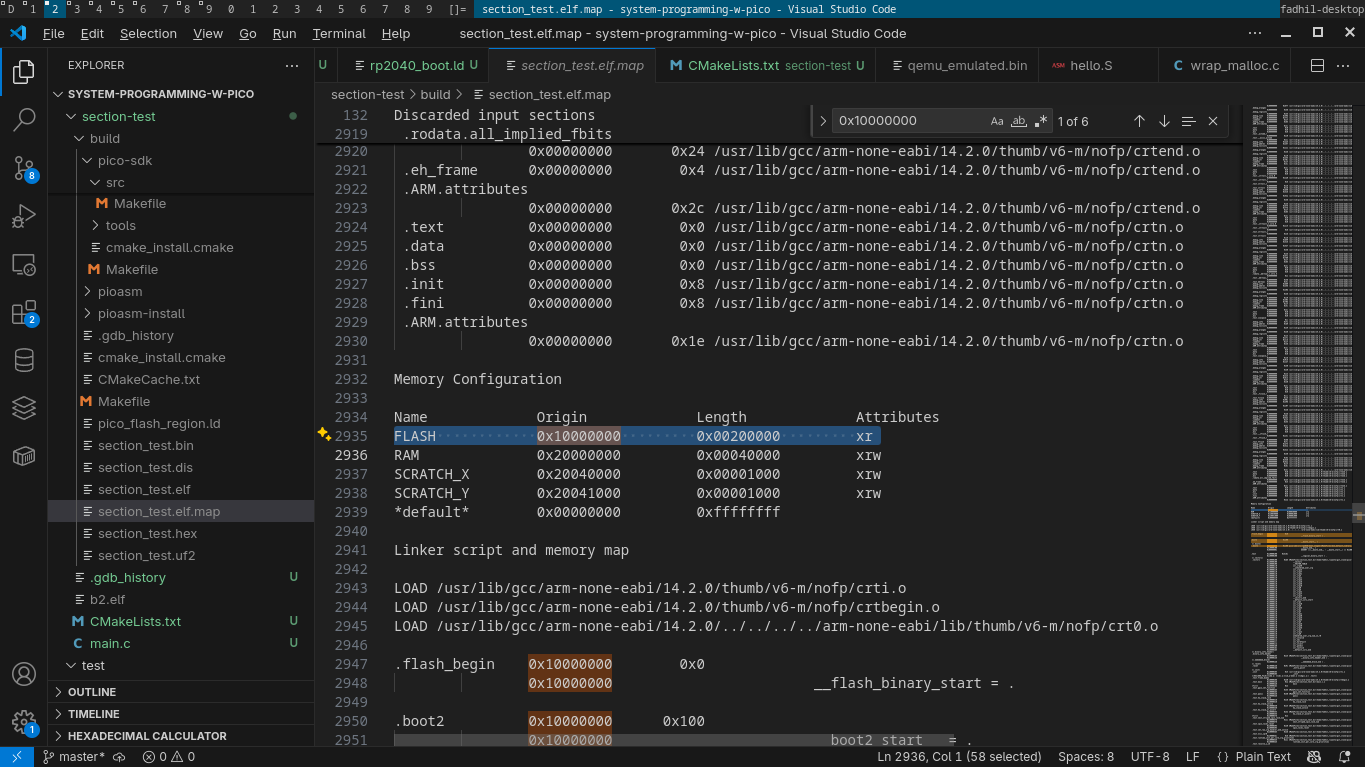

see missing part? yes, that is PICO_FLASH_SIZE_BYTES_STRING, lets find out in our *.elf.map

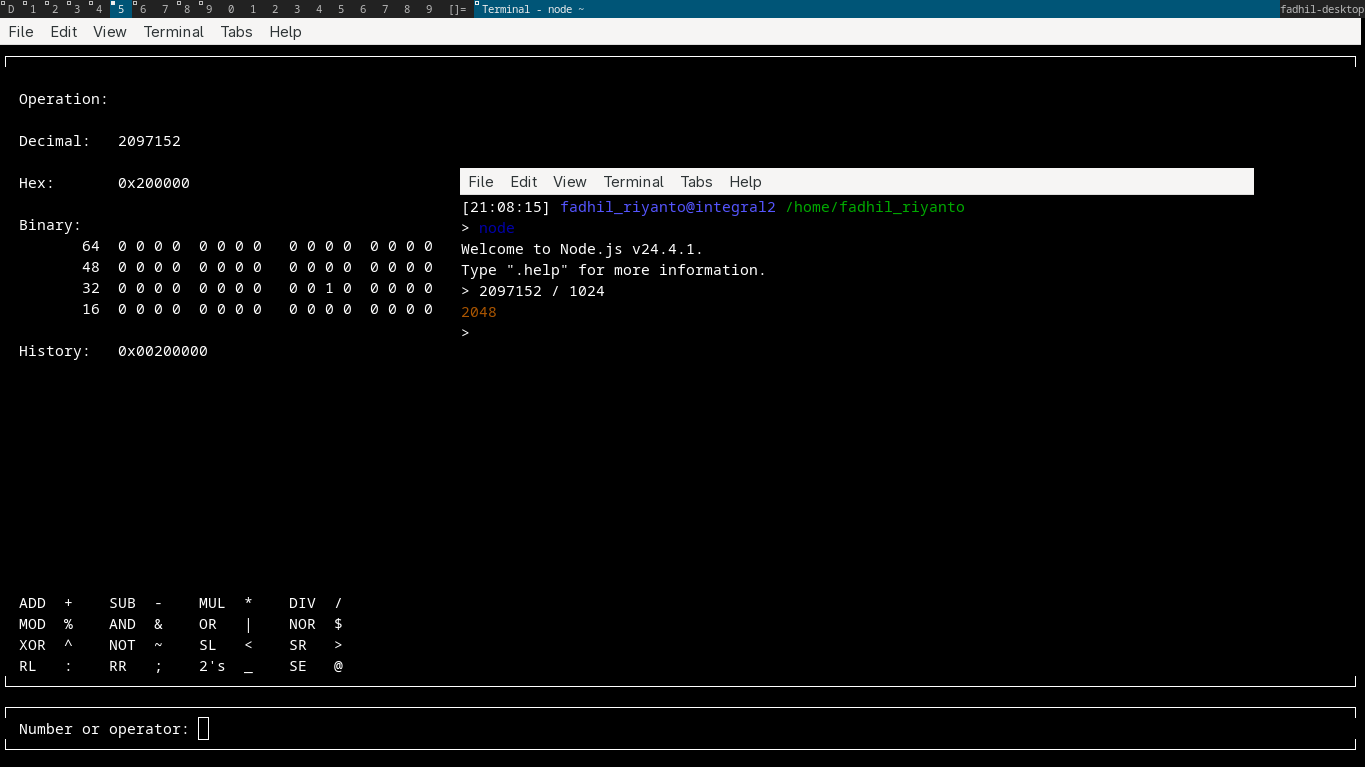

that is 2048K

Issue that I find

I think arm-none-eabi-objdump is mistaken arm-thumb-1 instruction as full 32 bit arm, so they just say .word 0xdeadbeef
